NANTAI NTS208 Portable New Design EPS208 Common Rail Diesel Injector Machine NTS 208 EPS 208 CR Injector Test Bench

Short Description:

NTS208 is NANTAI factory 2022 new design mini common rail injector test bench.

It is a portable test bench which can put in car and take outside for diesel vehicle service, very convenient. It has a very innovative shape and has been welcomed by customers all over the world as soon as it came out.


Product Detail

Product Tags

NTS208 Introduce

1. NTS208 Test bench is our latest Independence researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer, Windows operating system.
2. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved.
3. It adopts original CP3 common rail pump to provide 0~2000 bar for rail pressure.
4. The rail pressure can be adjusted automatically,and it also provide pressure overload protect.
5. It can test common rail injector of all brands.
6. Advanced technology, steady performance, precise measurement and convenient operation.
7. Now our software already have more than 5000pcs injector data.

Functions of NTS208 common rail injector test bench

1. Test common rail injector brands: All Brands
2. Test 1 piece of injector
3. Also can test piezo injectors.
4. Test the Leakage performance of common rail injector.
5. Test the injector inductance.
6. Injection oil quantity and back oil quantity(pre-injection, idling, emissions, full load).
7. Electronic fuel delivery measuring, automatic testing and detection.

8. Data can be searched and saved.
9. QR coding function.
10. Also can add the BIP function if you need, this is an optional function. BIP means injector response time testing.

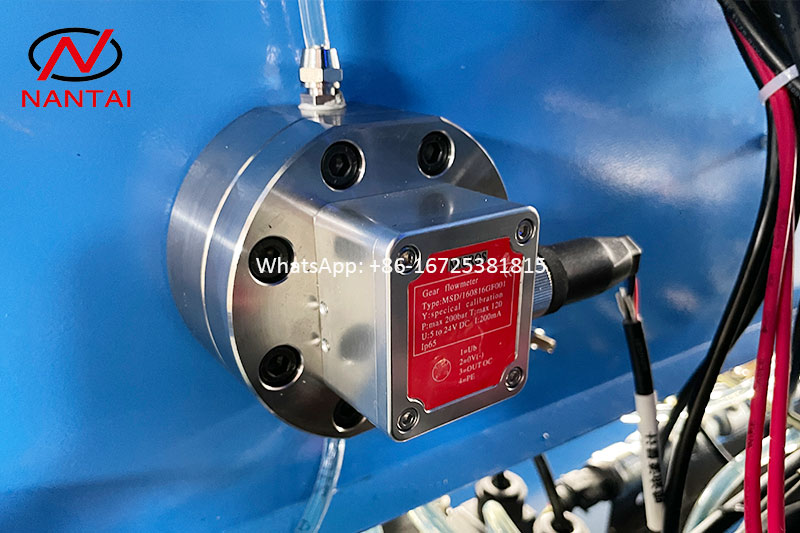

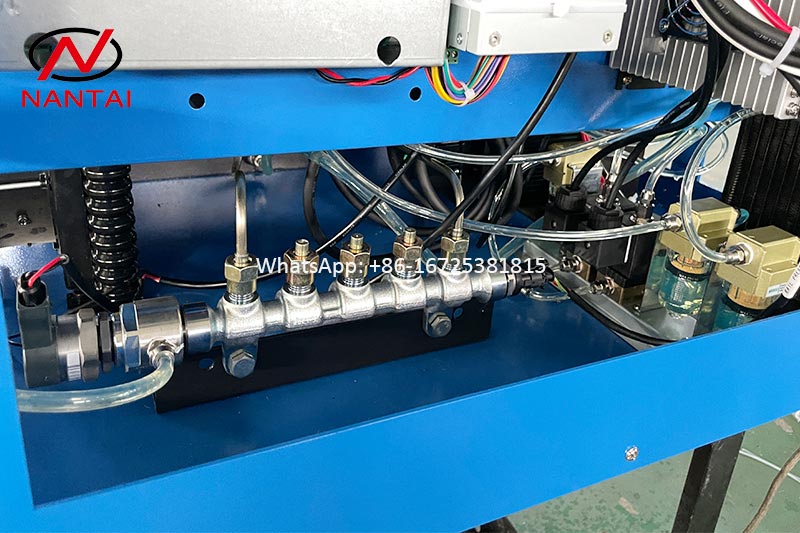

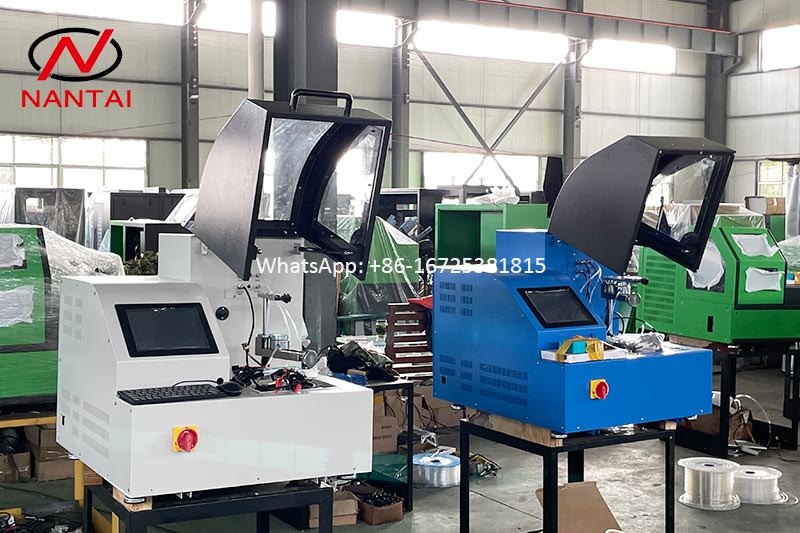

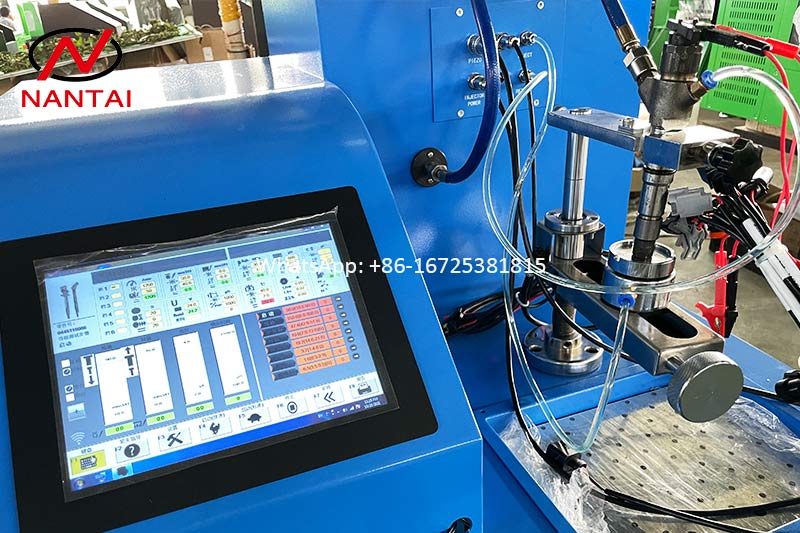

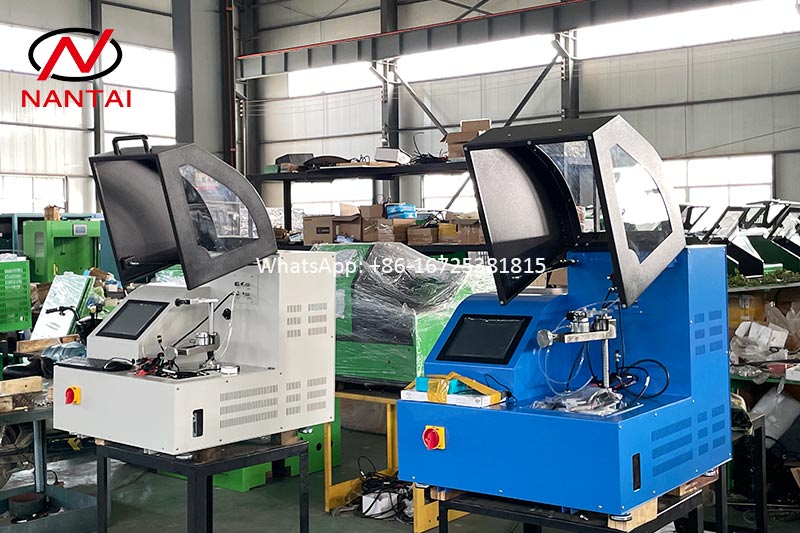

Machine Details of NTS208 common rail injector test bench

Parameters of NTS208 common rail injector test bench

Output Power 3.8kw
Power Voltage 220V, 1ph
Motor Speed 0~3000rpm
Oil Pressure 0-2000 bar
Flow Measure Range 0-600ml/1000times
Flow Measurement Accuracy 0.1ml
Temperature Control Range 40+-2
Packing Size 1*0.88*0.87m
Net Weight 145kgs
Gross Weight 170kgs
