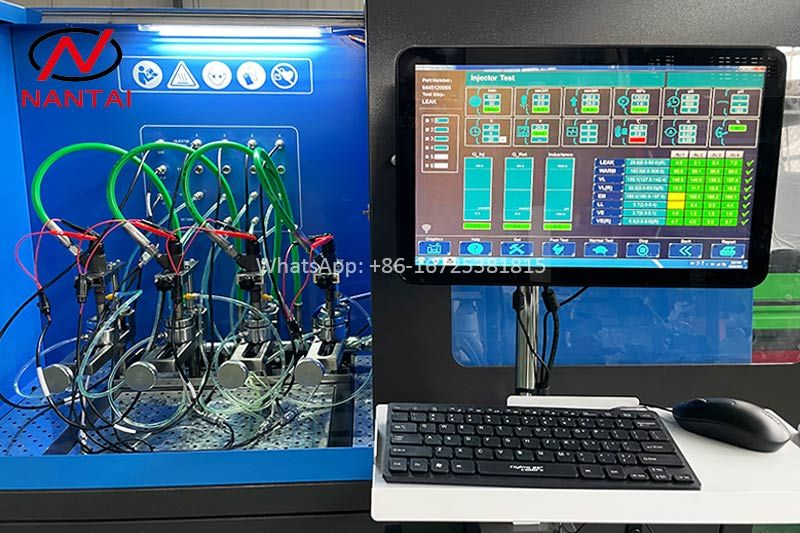

NANTAI NTI700 Common Rail Injector Test Bench can 4pcs CR Injector Test at Same Time with 4 Flowmeter Sensor

Short Description:

1.NTI700 common rail injector test bench, can test the performance of high-pressure common rail injector 4pcs at same time.

2.Oil quantity is measured by sensor and displayed on 19 tactile touch screen, controlled by computer, Windows operating system.

3.More than 3000 kinds of injecotors data can be searched and used.

4.It adopts original CP3 common rail pump, The rail pressure can be adjusted automatically,and it also provide pressure overload protect.

5.Rail pressure can be tested in real time.

6.Provide pressure overload protect.


Product Detail

Product Tags

NTS815A Introduction

1.NTI700 common rail injector test bench, can test the performance of high-pressure common rail injector 4pcs at same time.

2.Oil quantity is measured by sensor and displayed on 19 tactile touch screen, controlled by computer, Windows operating system.

3.More than 3000 kinds of injecotors data can be searched and used.

4.It adopts original CP3 common rail pump, The rail pressure can be adjusted automatically,and it also provide pressure overload protect.

5.Rail pressure can be tested in real time.

6.Provide pressure overload protect

7.Pulse and frequency of the injector can be adjusted.

8.Injection time can be set.

9.Protection function of short-circuit.

10.Frequency converter inside to keep the RPM.

11.Advanced technology, steady performance, precise measurement and convenient operation, low noise.

Standard Function

1.Can test 4pcs Common Rail Injectors at same time. (BOSCH DENSO DELPHI SIEMENS,Piezo) have 4pcs injector flow meter sensors working at same time.

2.Piezo Injector Testing, also can test 4pcs at same time.

3.Injector inductance testing.

4.QR coding: Bosch Selenoid IMA, Bosch Piezo ISA, Delphi C2i/C3i, Siemens IIC Coding, Denso QR Coding.

5.Test the pre-injection of common rail injector.

6.Test the max oil quantity of common rail injector.

7.Test the cranking oil quantity of common rail injector.

8.Test the back flow oil quantity of common rail injector.

9.Test the average oil quantity of common rail injector.

10.Test the seal performance of common rail injector.

11.Data can be searched and saved.

12.Real-time display fuel injection /return volume.

Optional Function

BIP function 4pcs at same time (injector response time testing.)

Parameters
Output Power 4kw
Input Power 380V,3Ph/220V,3Ph/220V,1Ph
Pressure Range 0-2300bar
Motor Speed 0-4000rpm
Flow Rate Range 0.008-4L/min
Accuracy 0.30%
Temperature Control Range 40±2
