NANTAI NT1010 Test Bench NT1010 Common Rail System Test Bench NTI1010 NT-1010 NTS 1010 Common Rail Injector Test Bench
NT1010 Common Rail Test Bench
Common rail test bench is the professional test bench which is used for testing common rail system, mainly test for common rail pump and injectors.
Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems.
The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.
It guarantees a high level of re-productivity of the measured valve.
Functions of NT1010 Test Bench
1. Common Rail Pump of BOSCH / DELPHI / DENSO / SIEMENS
2. Common Rail Injector of BOSCH / DELPHI / DENSO / SIEMENS and PIEZO injector testing.
3. Injector inductance testing.
4. HPO pump testing.
5. Testing data is inside.
6. HEUI testing function.(optional)
7. EUI/EUP testing function.(optional)
8. CAT HEUP pump testing.(optional)
9. CAT 320D pump testing. (optional)
10. CRIN4 4-pin injector testing.(optional)
11. HP5 HP6 pump testing.(optional)

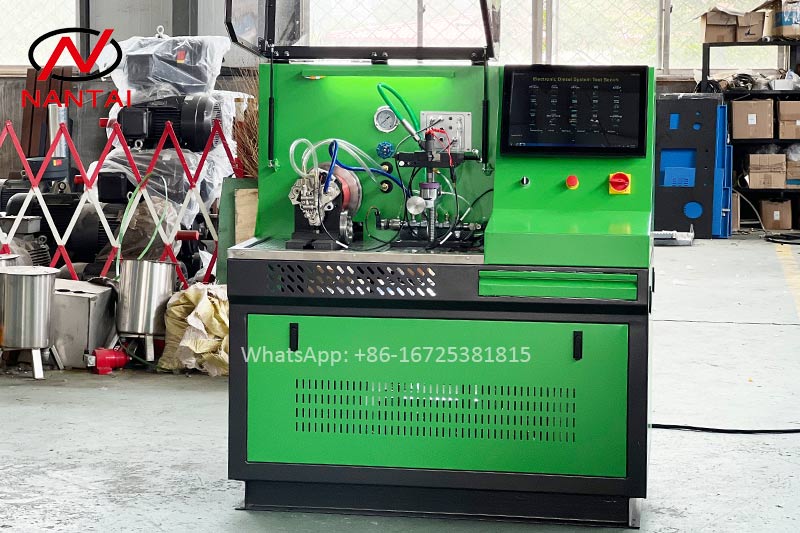

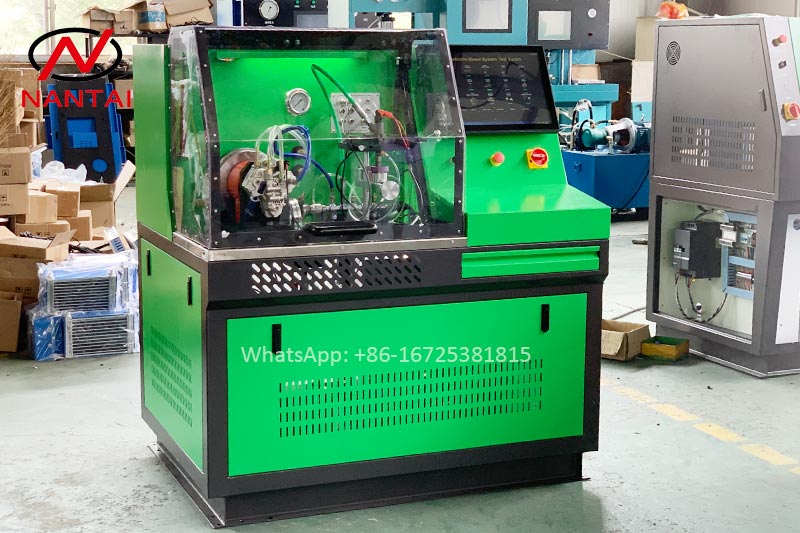

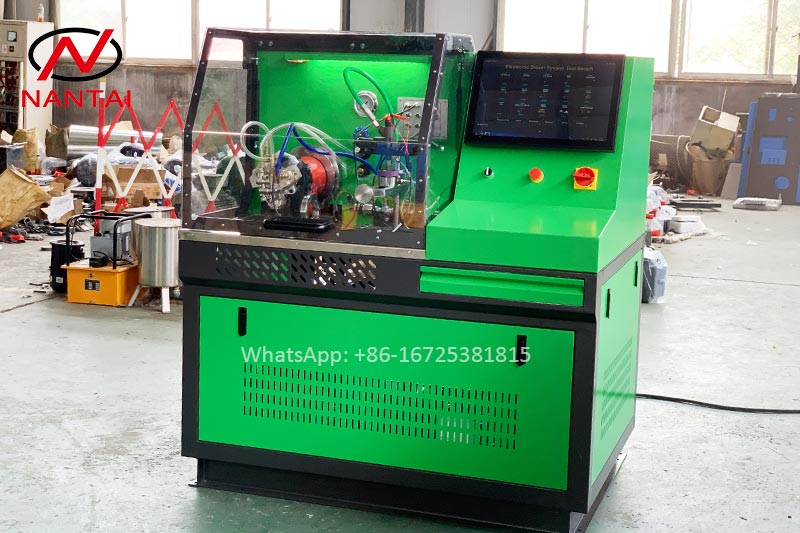

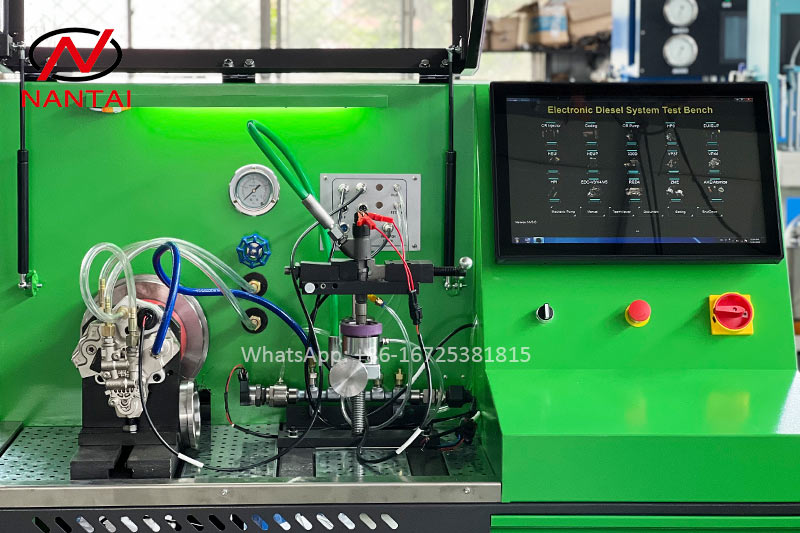

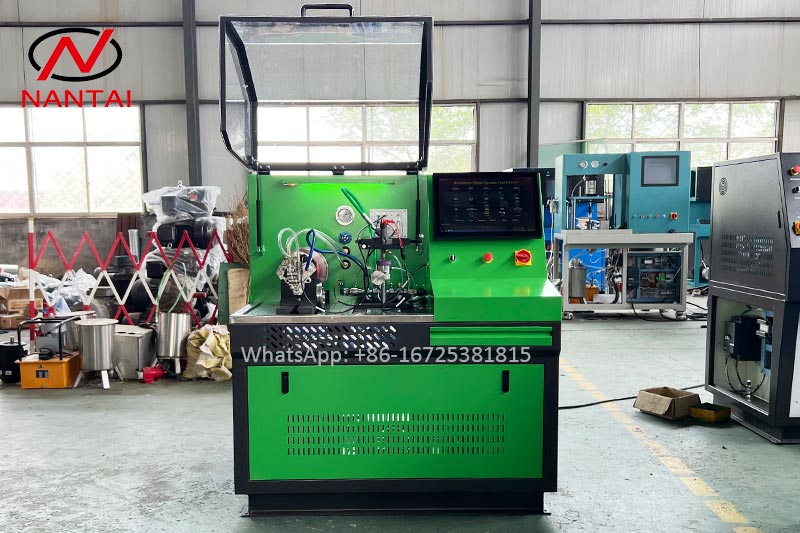

Machine Details of NT1010 Common Rail System Test Bench
Technical Parameters of NT1010 Common Rail Test Bench
| Output Power | 7.5kw, 11kw |
| Electronic Power Voltage | 380V, 3PH / 220V, 3PH/ 220V, 1PH |
| Motor Speed | 0-4000RPM |
| Pressure Adjustment | 0-2300BAR |
| Flow Testing Range | 0-600ml/1000times |
| Flow Measurement Accuracy | 0.1ml |
| Temperature Range | 40±2 |
| Cooling System | Air or Forced Cooling |
