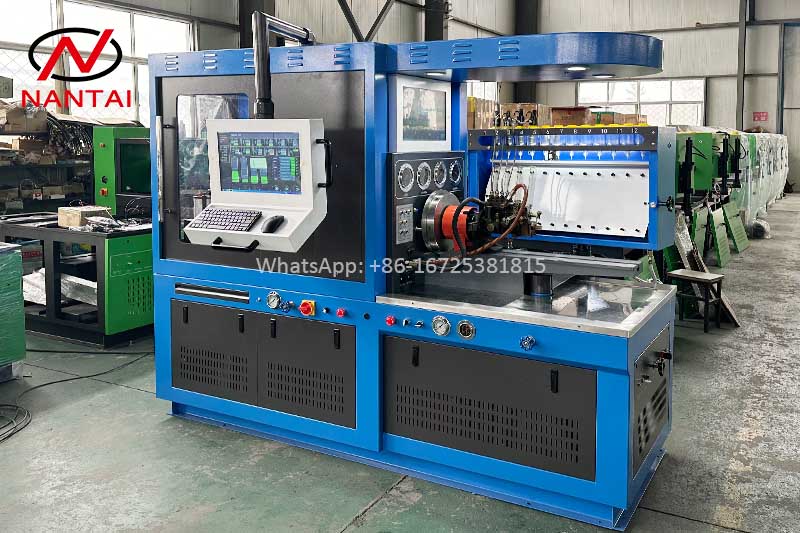

NANTAI NTS815A PRO Dual Touch Screen Dual Operating System Dual Working Area Test Bench Can Work at Same Time
NTS815A PRO Introduction
NTS815A PRO Dual Touch Screen Dual Operating System Dual Working Area, multi-function test bench, integrates test functions such as high-pressure common rail, medium-pressure common rail, and mechanical pump in the same device, all-in-one, very popular during these years.
Can be widely measure Bosch, Denso, Delphi, Siemens and other common rail pump and injector, the software system is equipped with more than 5000 injector datas and more than 1000 pump datas, in maintenance and inspection can be used as a reference value or reference value, allowing users repair work more convenient.
our design team has been upgrade many times, and we also can customized function and shape and color as your request.
Technical Parameters
| Model | NTS815A |
| Electronic power | 3Phase 380V or 3Phase 220V |
| Output power | 4+11KW for standard; 15KW, 18.5KW, 22KW for optional |
| Motor speed | 0-4000RPM |
| Pressure adjustment | 0-2300bar |
| Flow testing range | 0-600ml/1000times |
| Flow measurement accuracy | 0.1 ml |
| Temperature range | 40+-2 |
Function
Left area function details:
Standard:
1. Automatically test common rail injectors and piezo injectors.
2. Automatically test the industance of injector solenoid valve.
3. Automatically test voltage-current curve of the injector.
4. QR coding for BOSCH DENSO DELPHI SIEMENS.
5. Automatically test CAT C7/C9/C-9/3126B injectors.
Optional:
6. BIP function for common rail injector.
7. Automatically test 3408 3412 ford6.0 injector.
8. Automatically test 3412E ISUZU injector.
9. Automatically test G2.9 3116 injector.
Right area function details:
Standard:
1. Automatically test mechinaical pumps.
2. Automatically test common rail pumps.
3. Automatically test Denso HP0 pumps.
4. Automatically test CAT 320D Pump.
Optional:
5. Automatically test EUI/EUP, with EU103 cambox.
6. Automatically test Cummins HPI injector (X15/Q60 injector).
7.Automatically test CAT HEUP actuating pump.
8.Automatically test VP37 and VP44 pump
9.Automatically test RED4 Pump.
