NANTAI NTS208-PRO Common Rail Injector Test Bench CRI Test Bench

Short Description:

NTS208-PRO is NANTAI factory new design common rail injector test bench.

It is an appearance upgrade based on NTS208.

Because some clients like NTS208, but need to customize an additional table or cabinet to place it on after receiving the NTS208.

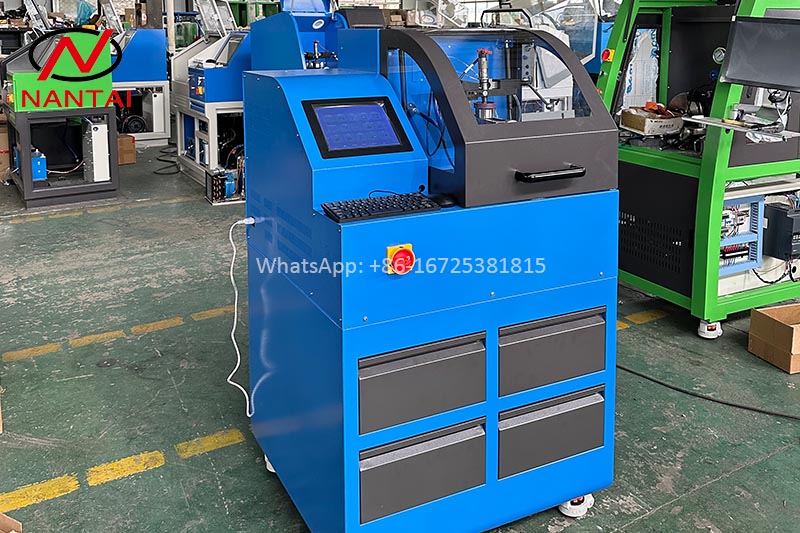

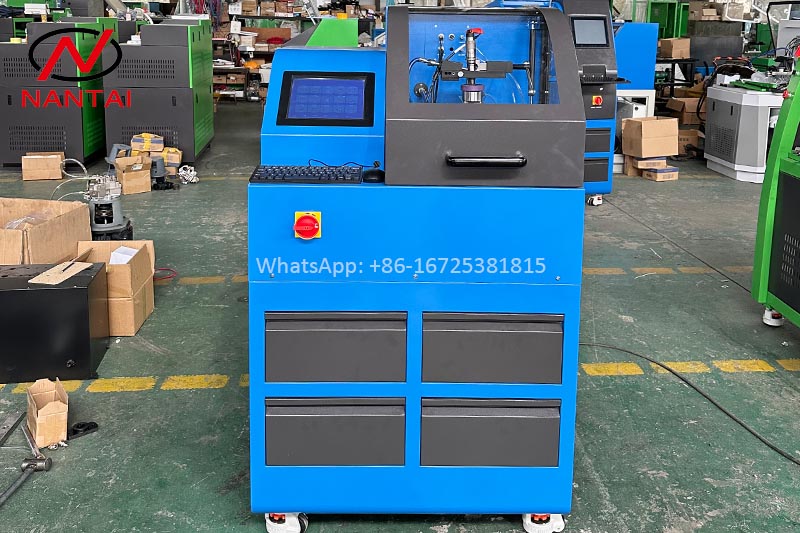

So we made this upgrade NTS208-PRO, so that clients can buy the full set directly. Below we made 4 large drawers, which can store the tools, accessories, or spare parts for injectors for our clients.


Product Detail

Product Tags

NTS208-PRO Introduce

1. NTS208-PRO Common rail injector test bench for high-pressure common rail injector testing, controlled by industrial computer, Windows operating system.
2. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved.
3. It adopts original CP3 common rail pump to provide 0~2000 bar for rail pressure.
4. The rail pressure can be adjusted automatically,and it also provide pressure overload protect.
5. It can test common rail injector of all brands.
6. Advanced technology, steady performance, precise measurement and convenient operation.
7. Now our software already have more than 7000pcs injector data.

Functions of NTS208-PRO common rail injector test bench

1. Test common rail injector brands: All Brands
2. Test 1 piece of injector
3. Also can test piezo injectors.
4. Test the Leakage performance of common rail injector.
5. Test the injector inductance.
6. Injection oil quantity and back oil quantity(pre-injection, idling, emissions, full load).
7. Electronic fuel delivery measuring, automatic testing and detection.

8. Data can be searched and saved.
9. QR coding function.
10. Also can add the BIP function if you need, this is an optional function. BIP means injector response time testing.

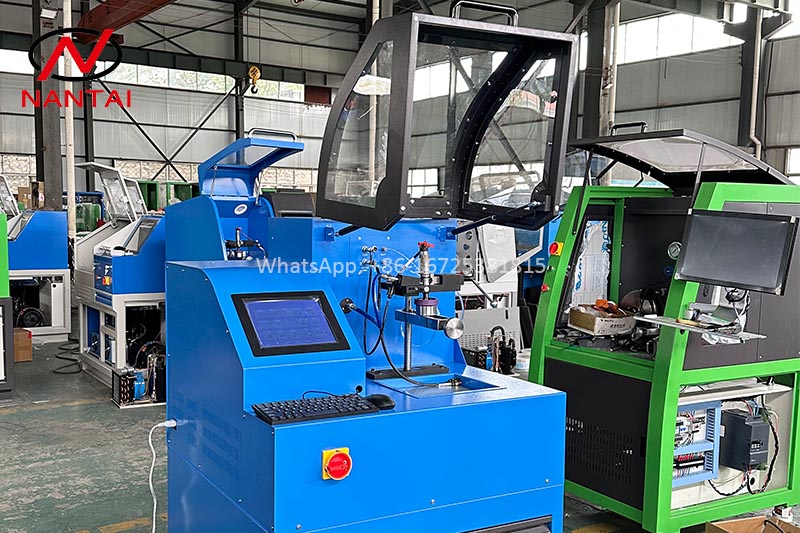

Machine Details of NTS208-pro common rail injector test bench

Parameters of NTS208-PRO common rail injector test bench

Output Power 3.8kw
Power Voltage 220V, 1ph
Motor Speed 0~3000rpm
Oil Pressure 0-2000 bar
Flow Measure Range 0-600ml/1000times
Flow Measurement Accuracy 0.1ml
Temperature Control Range 40+-2
Packing Size 1*0.88*0.87m
Net Weight 145kgs
Gross Weight 170kgs
