NANTAI CR926 Common Rail System Test Bench

Short Description:

CR926 Common rail system test bench, is the classical model in this industry, with 17’ touch screen, also with keyboard and mouse, very easy to operate.

Mainly test for common rail pump and injector.Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems. The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing. It guarantees a high level of re-productivity of the measured value.

professional test bench which is used for testing common rail system, can finish the high-pressure common rail system functional testing.


Product Detail

Product Tags

CR926 Common Rail Test Bench

Common rail test bench is the professional test bench which is used for testing common rail system, mainly test for common rail pump and injectors.

Also it is continuous fuel delivery analysis computerized measuring system for conventional and new diesel injection systems.

The electronic fuel delivery measuring system is compulsory for modern diesel injection system testing.

It guarantees a high level of re-productivity of the measured valve.

Functions of CR926 Common Rail Test Bench

1. Common Rail Pump of BOSCH / DELPHI / DENSO / SIEMENS

2. Common Rail Injector of  BOSCH / DELPHI / DENSO / SIEMENS and PIEZO injector testing. (6 pieces common rail injector testing)

3. Pump Delivery Testing and HPO pump testing.

4. Pressure Sensor / DRV valve testing

5. Testing data is inside .

6. Electronic fuel delivery measuring (Automatic detection)

7. Data can be searched, printed and made into database .

8. HEUI testing function.(optional)

9. EUI/EUP testing function.(optional)

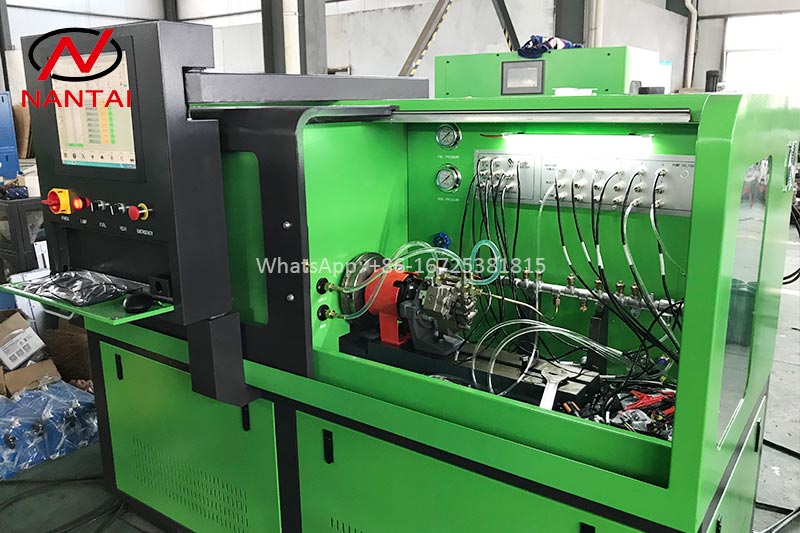

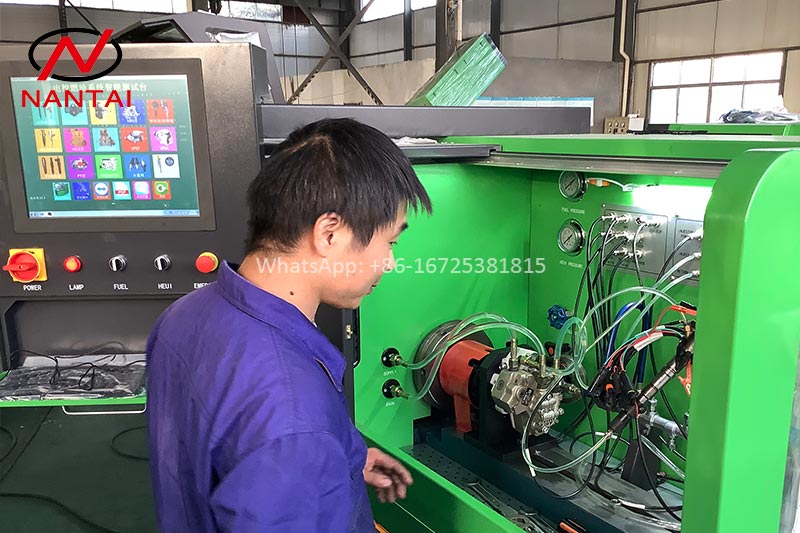

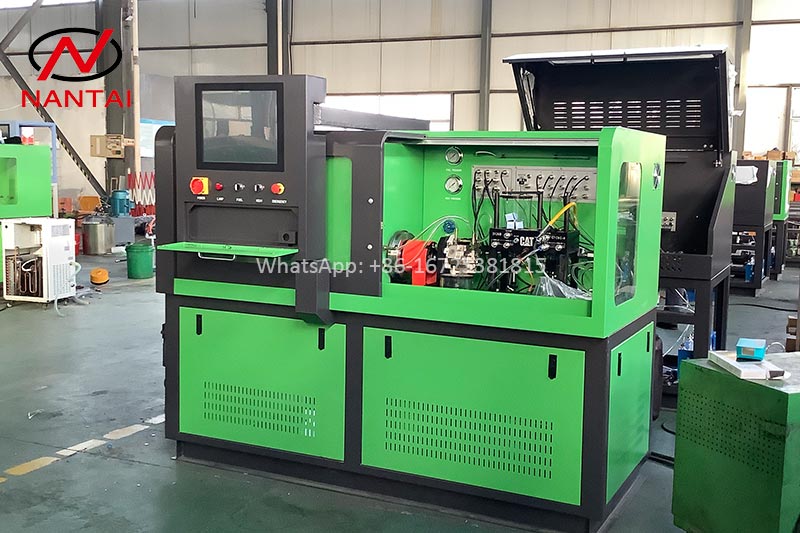

Machine Details of CR926 Common Rail Test Bench

Technical Parameters of CR926 Common Rail Test Bench

Output Power 7.5kw, 11kw, 15kw, 18.5kw
Electronic Power Voltage 380V, 3PH / 220V, 3PH / 220V, 1PH
Motor Speed 0-4000RPM
Pressure Adjustment 0-2000BAR
Flow Testing Range 0-600ml/1000times
Flow Measurement Accuracy 0.1ml
Temperature Range 40±2
Cooling System Air or Forced Cooling
