PT212 Introduce
PT 212 PT fuel pump Test bench is special equipment used to provide test and calibration for CUMMINS PT fuel pumpt has abundant functions, high measure precision, and fast sampling.
For instance: Fit for: PT(G), PT(G)VS, PT(G)MVS,PTGSVS,PTGAFC, PTGAFC-VS, PTR,PTH-VS fuel pumps etc and damping ASA valve.
PT212 video: https://youtu.be/ORBTWXEzap0
PT212 Functions
Functions:
- Gear pump pressure and vacuum test
- Idle speed test
- Weight assistant pressure test
- Pressure and flow test in every check point
- AFC test
- Oil stopping test
- Route test of throttle
- Oil return test of throttle
- ASA valve test
- EFC test
- Shut down valve test Main technique parameter

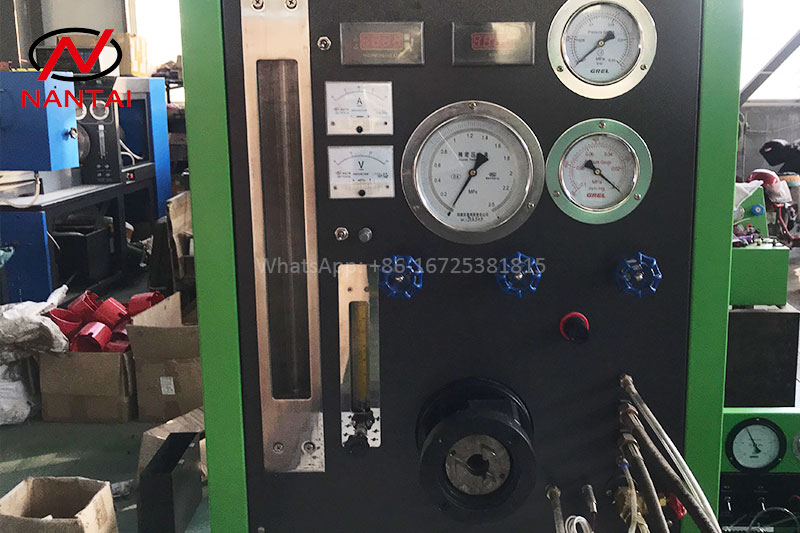

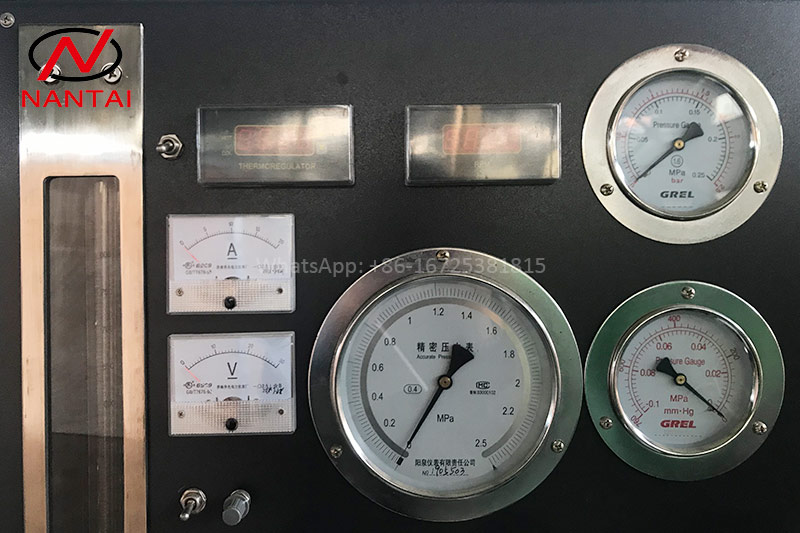

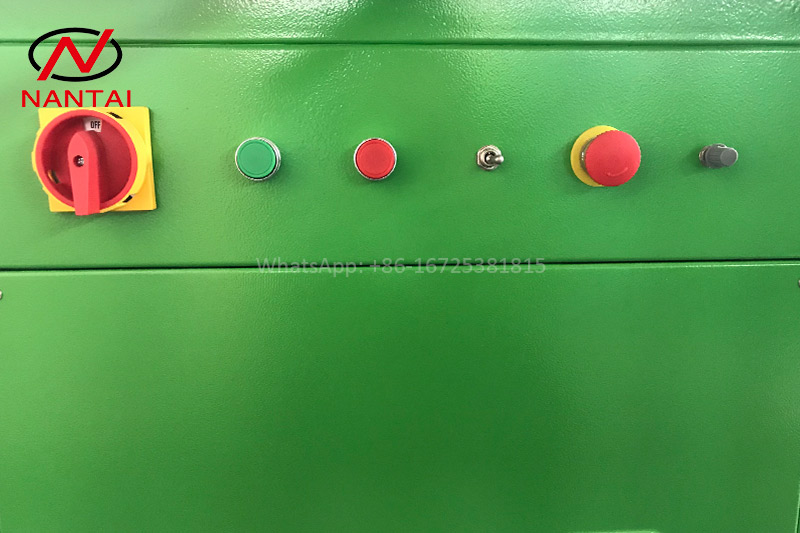

Machine Details of PT212 test bench
Parameters of PT212 PT pump test bench
| Oil test pressure | 400 PSI |
| Air test pressure | 250 PSI |
| Gear pump test pressure | 600 PSI |
| Oil test demarcated flow | 75-720, 70-2400PPH |
| Oil test leak flow | 10-760 ML/MIN |
| Air test flow | 0-150ML/MIN |
| Main motor power | 4KW |
| Output shaft speed range | 0-4000r/min(speed fluctuation is less than: 1.5rpm) |
| Main flow meter range | 1600L/h |
| Leakage flow meter range | 600L/h |
