NANTAI CR818 Common Rail Injector Pump Test Bench with Customized Shape and Customized Color
CR818 Common Rail Test Bench
CR818 Common rail test bench is the professional test bench which is used for testing common rail system, mainly test for common rail pump and injectors.
Functions of CR818 Test Bench
1. Common Rail Pump of BOSCH / DELPHI / DENSO / SIEMENS
2. Common Rail Injector of BOSCH / DELPHI / DENSO / SIEMENS and PIEZO injector testing.
3. Injector inductance testing.
4. HPO pump testing.
5. Testing data is inside.
6. EUI/EUP testing function.(optional)
7. CAT 320D pump testing. (optional)
8. CRIN4 4-pin injector testing.(optional)
9. HP5 HP6 pump testing.(optional)

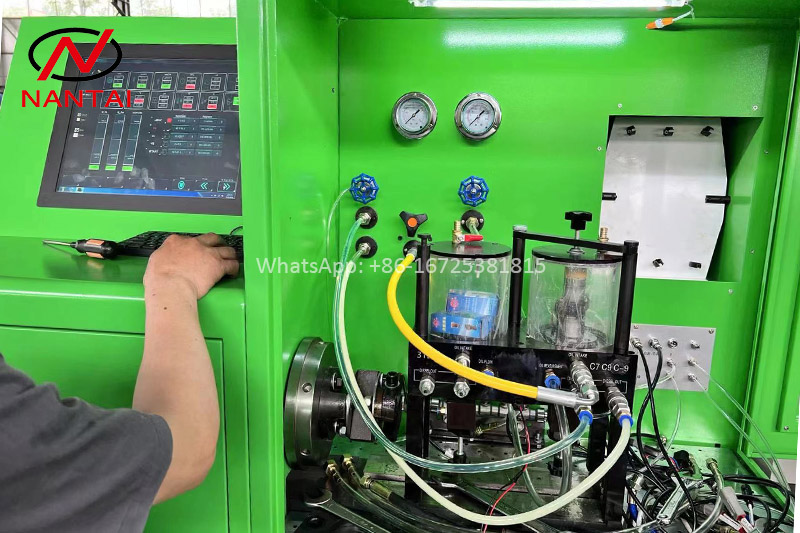

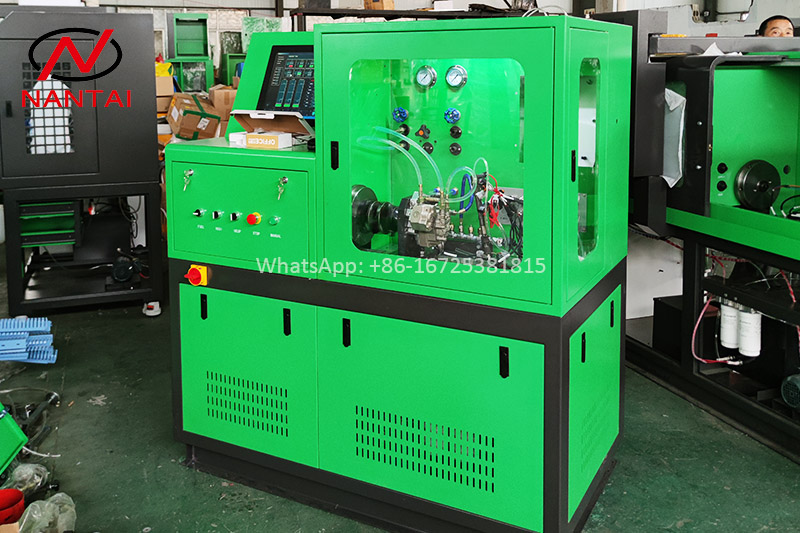

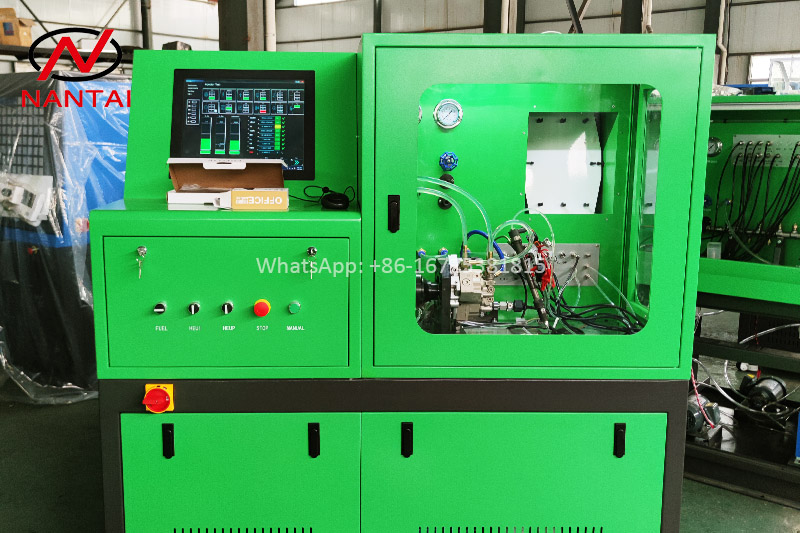

Machine Details of CR818 Common Rail System Test Bench
Technical Parameters of CR818 Common Rail Test Bench
| Output Power | 7.5kw, 11kw, 15kw, 18.5kw, 22kw |
| Electronic Power Voltage | 380V, 3PH / 220V, 3PH/ 220V, 1PH |
| Motor Speed | 0-4000RPM |
| Pressure Adjustment | 0-2300BAR |
| Flow Testing Range | 0-600ml/1000times |
| Flow Measurement Accuracy | 0.1ml |
| Temperature Range | 40±2 |
| Cooling System | Air or Forced Cooling |
