CT6000 GDI 0~200BAR High Pressure Gasoline GDI Injector Tester

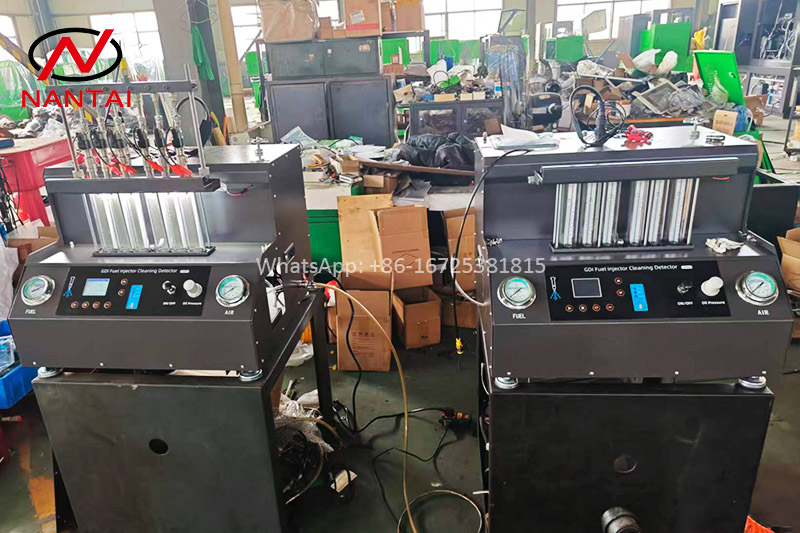

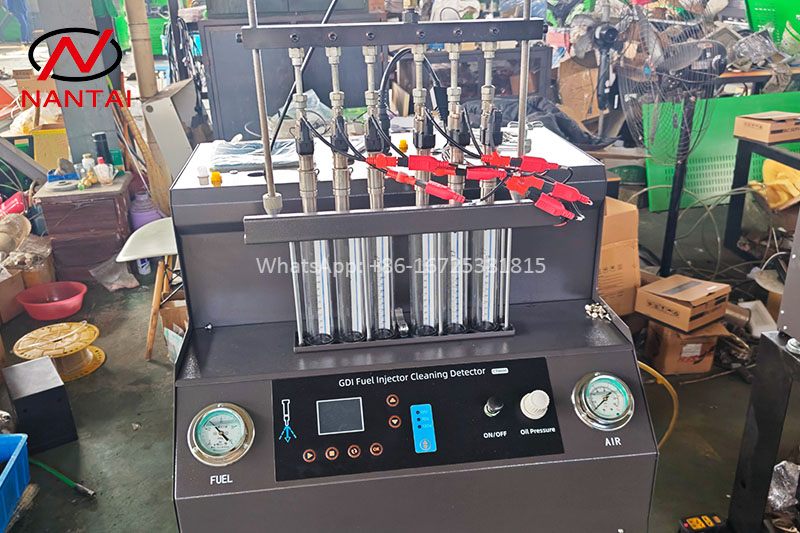

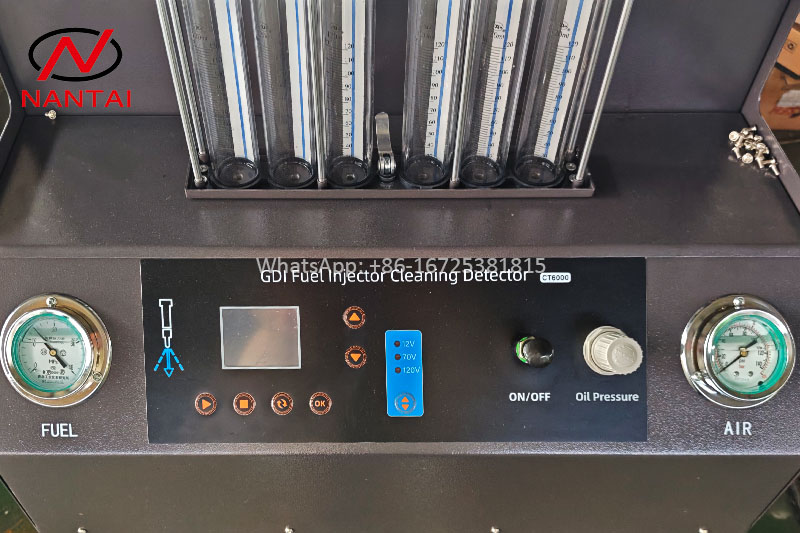

Detail Pictures of CT6000 GDI High Pressure Gasoline Injector Tester
Introduction of CT6000 GDI High Pressure Gasoline Injector Tester
1. Color LCD screen display
2. The voltage can be set to 12V, 70V, and 120V. It is suitable for ordinary fuel injectors and other types of fuel injectors such as GDI, EFI, FSI, etc., basically covering core brand automotive fuel injectors in Europe, America, and Asia.
3. The detection pressure is adjustable from 0 to 200 bar.
4. The cleaning and testing of 6 fuel injectors can be completed at the same time.
5. 13-step working condition test
(1) Survey
(2) Idle speed test
(3) Medium speed test
(4) High-speed test
(5) Accelerated testing
(6) Speed change test
(7) Leak inspection
(8) Idle speed quantitative test
(9) Medium speed quantitative testing
(10) Rapid quantitative testing
(11) Reverse cleaning
(12) Pulse injection test
(13) Wide pulse injection test
6. Voltage, pulse width, detection time, etc., working parameters can be adjusted at will
7. Support the investigation of GDI injectors.
Feature of CT6000 GDI High Pressure Gasoline Injector Tester
1. The ultrasonic cleaning technology is used to clean the equipment with strong cleaning ability.
2. Using electronic pressure control technology, the oil pressure is stable and the adjustable range is wide.
3. It uses high-definition color display screen, intuitive operation, easy to learn.
4. The tank level is intuitively displayed, and the test liquid can be recycled.
5. LED bright background light, can clearly see the working conditions of the nozzle.
6. A replaceable composite adapter is patented and applicable to a variety of vehicle models.
7. The test time, working frequency, number of oil injection, shortest switching pulse width and other parameters of the nozzle can be adjusted at will within the allowable range.
