Wholesale Oil Pump Test Bench Supplier – NANTAI Common Rail Test Bench CR918 Diesel CRDI Test Bench CR 918 for Multi-function HEUI HEUP EUI EUP HPI – NANTAI
Wholesale Oil Pump Test Bench Supplier – NANTAI Common Rail Test Bench CR918 Diesel CRDI Test Bench CR 918 for Multi-function HEUI HEUP EUI EUP HPI – NANTAI Detail:
CR918 Introduction
CR918 Common rail system test bench, integrates test functions such as high-pressure common rail, medium-pressure common rail, cool shape, very popular and hot model.
Can be widely measure Bosch, Denso, Delphi, Siemens and other common rail pump and injector, the software system is equipped with more than 3200 injector datas and more than 980 pump datas, in maintenance and inspection can be used as a reference value or reference value, allowing users repair work more convenient.
And for CR918 shape, our design team has been upgrade many times, and we also can customized function and shape and color as your request.
Technical Parameters
| Model | CR918 |
| Electronic power | 3Phase 380V or 3Phase 220V |
| Output power | 11KW for standard; 15KW, 18.5KW, 22KW for optional |
| Motor speed | 0-4000RPM |
| Pressure adjustment | 0-2300bar |
| Flow testing range | 0-600ml/1000times |
| Flow measurement accuracy | 0.1 ml |
| Temperature range | 40+-2 |
Function
|
Function |
|
|
Standard |
Common Rail Injector Testing of BOSCH DENSO DELPHI SIEMESN |
|
Common Rail Pump Testing |
|
|
HP0 pump testing |
|
|
Piezo injector testing |
|
|
Check the inductance of the fuel injectors |
|
|
Coding for BOSCH DENSO DELPHI SIEMENS… |
|
|
Optional |
Can test 6 injector |
|
Test 6pcs injector at same time, with 6pcs flowmeter sensors. |
|
|

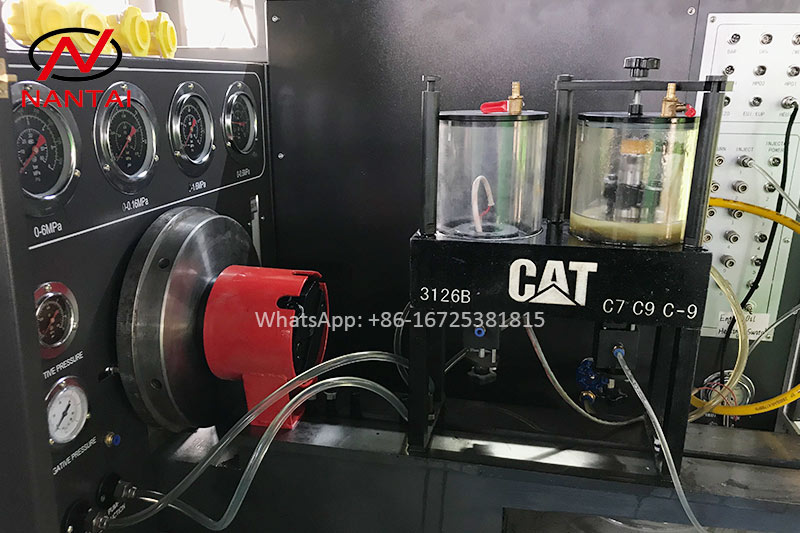

CAT HEUI Injector(CAT C7/C9/C-9,CAT3126 Injector Testing) |
|
|
EUI/EUP testing, we have 3 type CAMBOX. |
|
|
HPI testing, with two new actuators |
|
|
HPI testing, with two remanufactured actuators |
|
|
CAT C7/C9 Pump Testing |
|
|
CAT 320D Pump Testing |
|
|
BIP Testing for common rail injectors |
|
|
AHE testing |
|
|
external diesel fuel cooler |
|
|
Forced cooling system, inside of test bench |

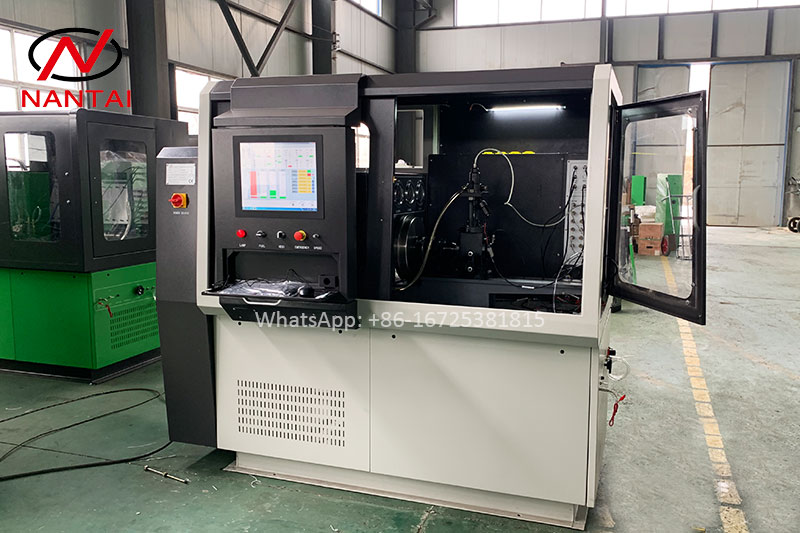

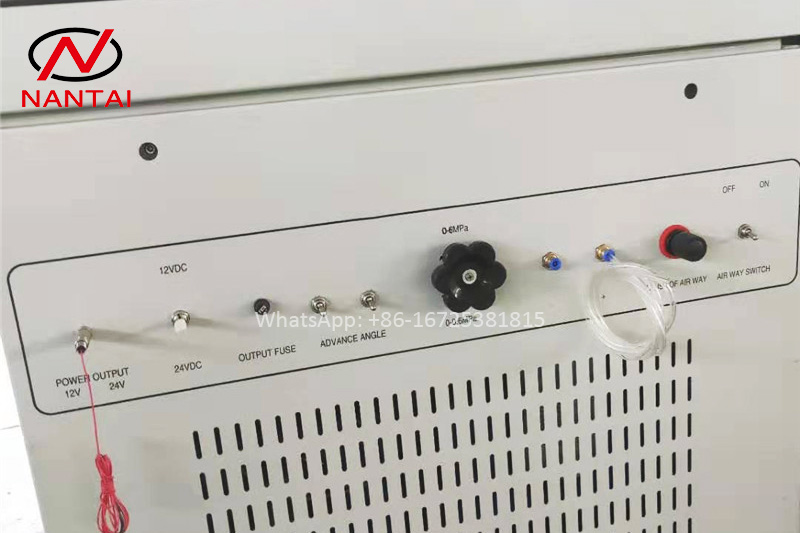

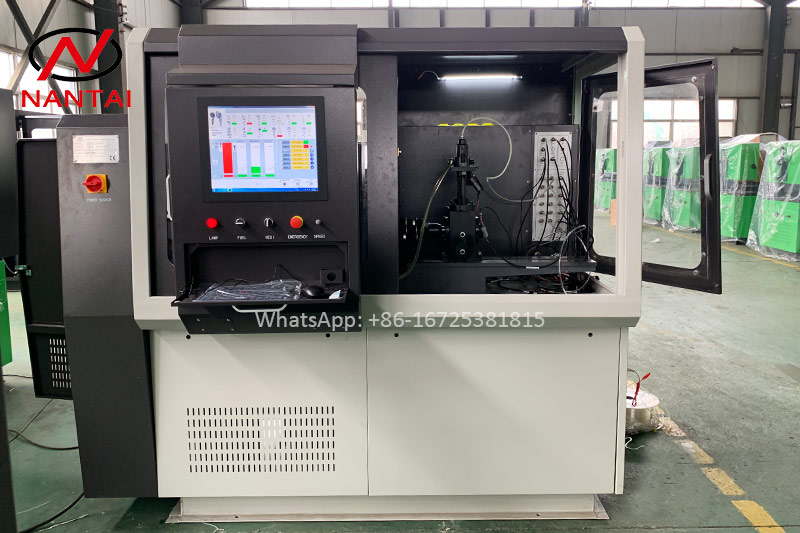

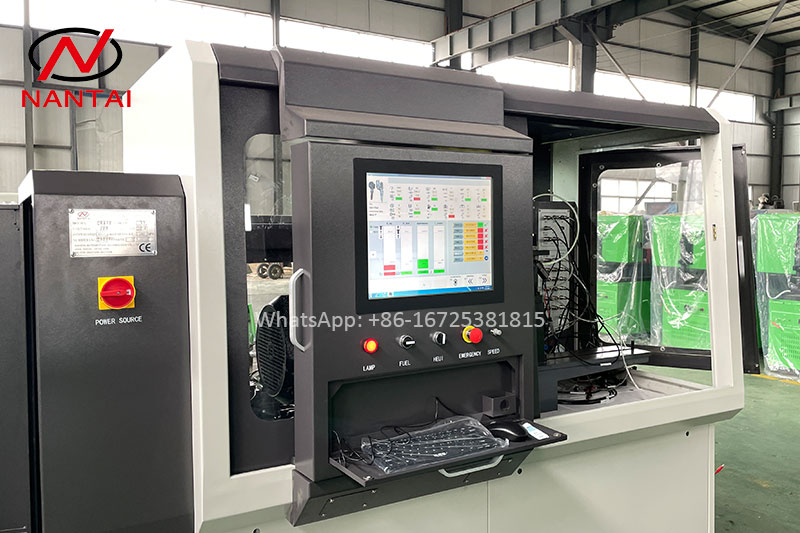

Product detail pictures:
