CR968 Multi-function Double Working Area Common Rail Injector Pump Test Bench with CRI CRP HEUI Mechanical Pump Testing Function

Short Description:

CR968 Multi-function Double Working Area Common Rail Injector Pump Test Bench with CRI CRP HEUI Mechanical Pump Testing Function
It has double working area, our new design, can add more optional function on it.

Send email to us

Product Detail

Product Tags

Functions of CR968 Multi-function Test Bench

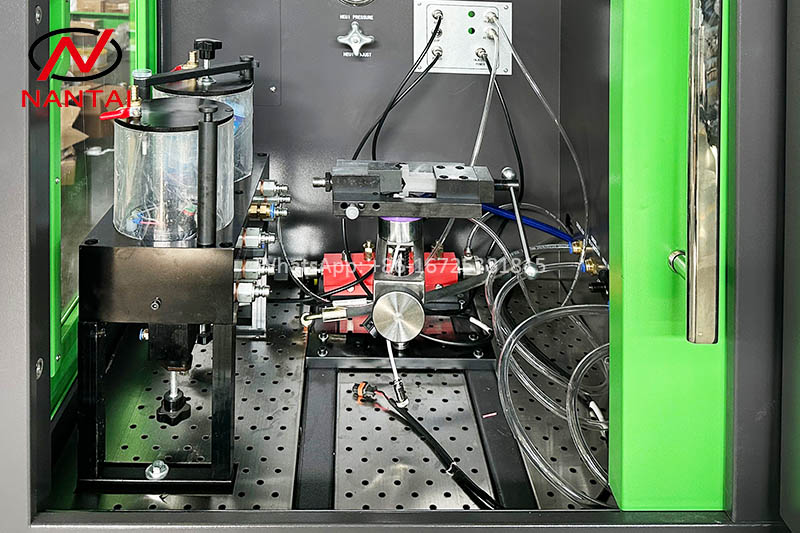

Left area function details:

Standard:

1. Automatically test common rail injectors and piezo injectors.

(One set flow sensor system, can test 1pc injector.)

2. Automatically test the industance of injector solenoid valve.

3. Automatically test voltage-current curve of the injector.

4. QR coding for BOSCH DENSO DELPHI SIEMENS.

5. Automatically test CAT C7/C9/C-9/3126B injectors.

Optional:

6. BIP function for common rail injector.

7. Automatically test 3408 3412 ford6.0 injector.

8. Automatically test 3412E ISUZU injector.

9. Automatically test G2.9 3116 injector.

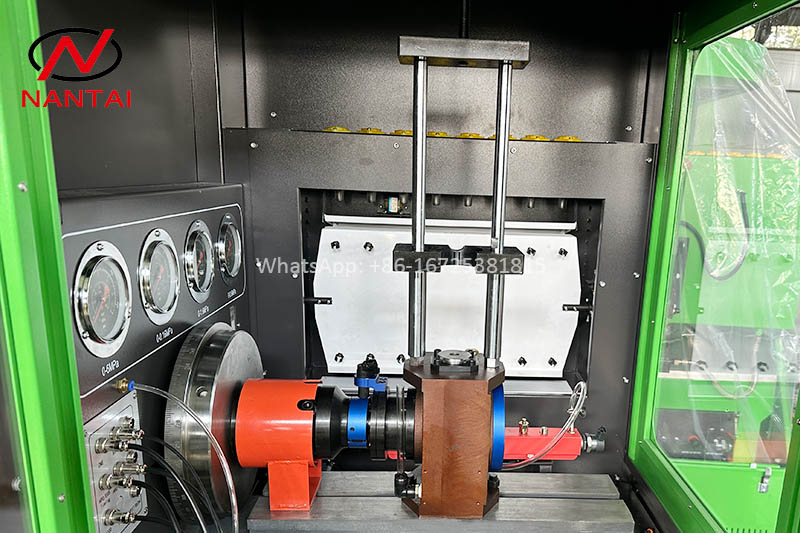

Right area function details:

Standard:

1. Automatically test common rail pumps.

2. Automatically test Denso HP0 pumps.

3. Automatically test CAT 320D Pump.

4. Automatically test EUI/EUP, with EU103 cambox.

5. Mechanical pump testing.

Optional:

6. Automatically test Cummins HPI injector (X15/Q60 injector).

7.Automatically test CAT HEUP actuating pump.

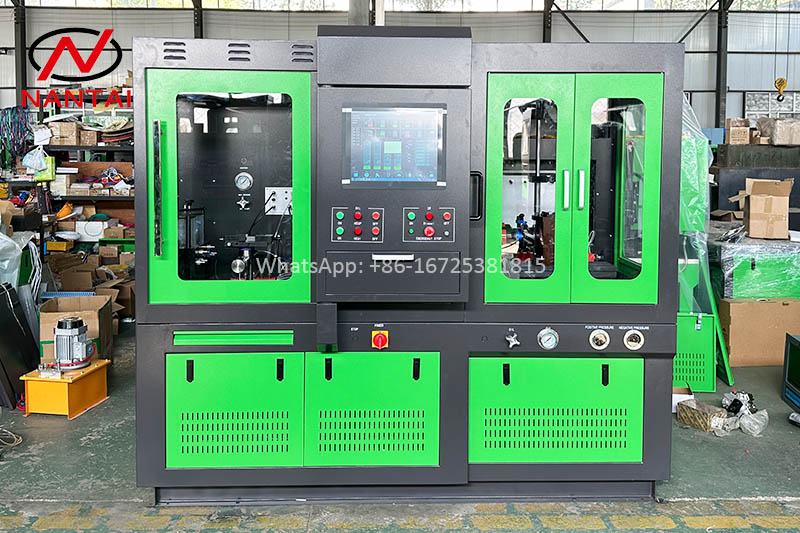

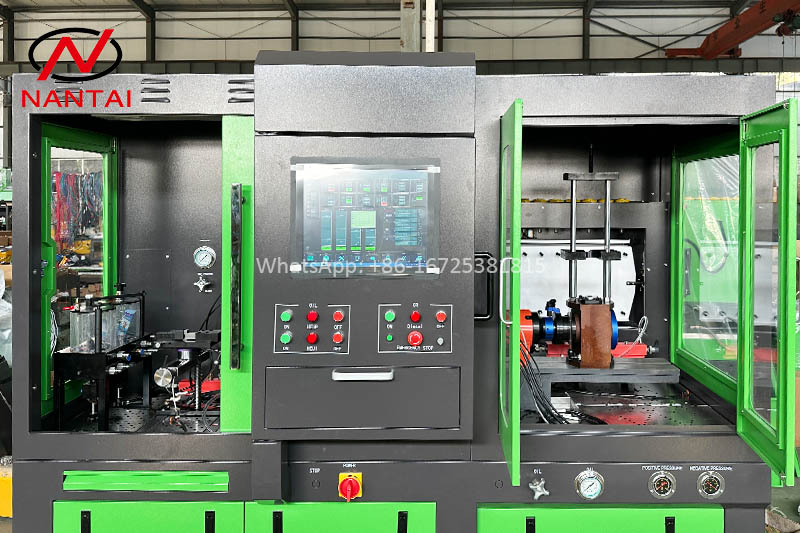

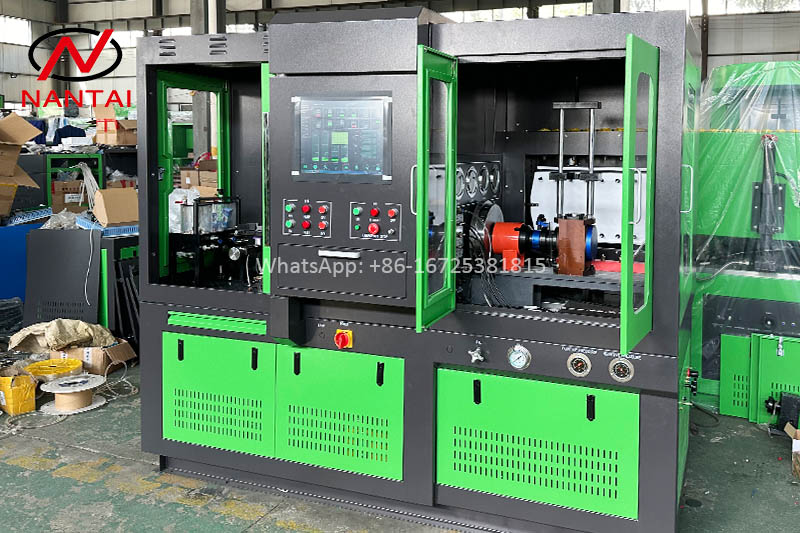

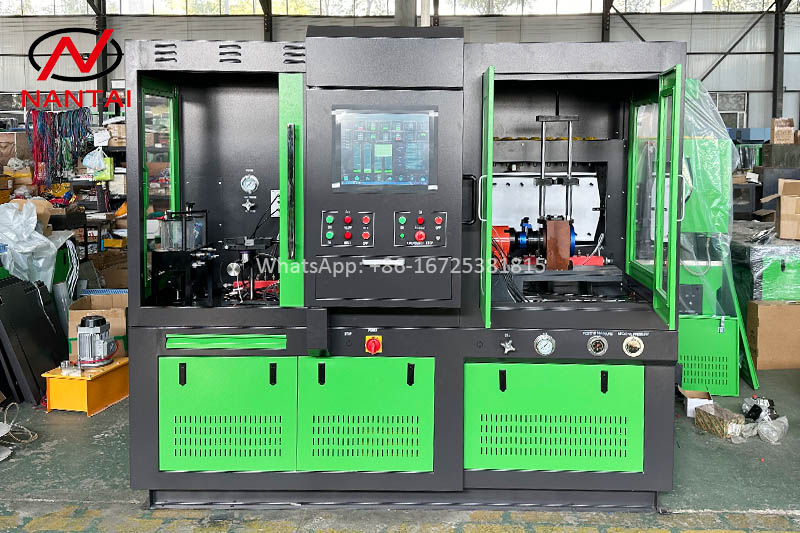

Machine Details of CR968 Multi-function Test Bench

Technical Parameters of CR968 Multi-function Test Bench

Output Power	4Kw+11Kw (15kw 18.5kw 22kw for optional)
Working Voltage	380V, 3Ph (220V 3Ph/1Ph for optional)
Pressure Range	0-2800bar
Motor Speed	0-4000rpm
Flow Rate Range	0.008-4L/min
Accuracy	0.30%
