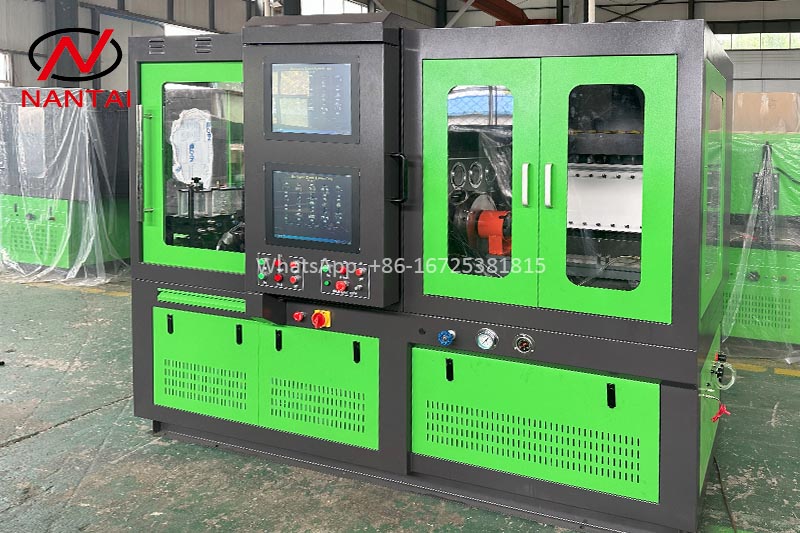

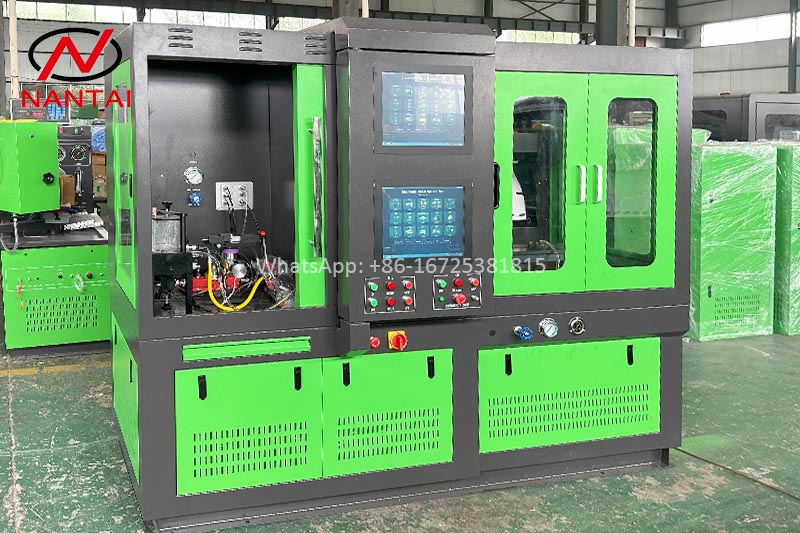

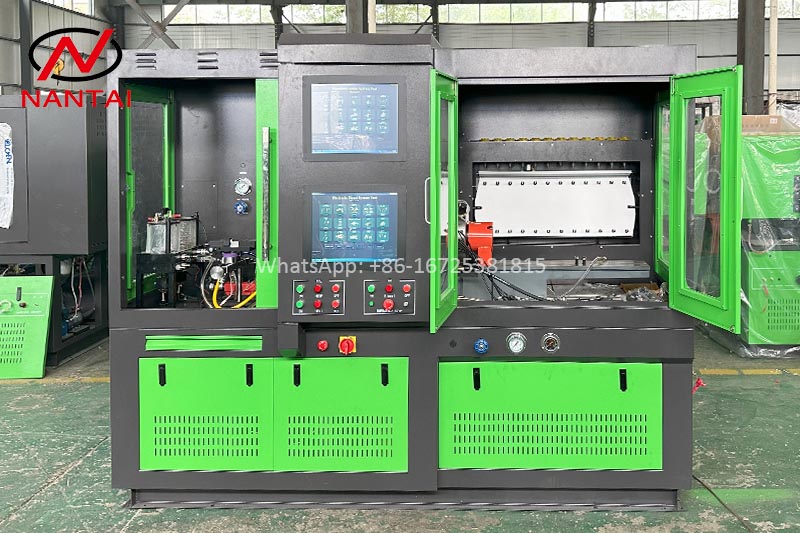

NANTAI NTS919-PRO Full Function Test Bench with Dual Display and Dual Operating System Dual Working Area
NTS919-PRO Introduction
The NTS919-pro dual - system full - function test bench is a high - performance device. It can automatically test a wide variety of components such as solenoid valve injectors, piezoelectric injectors, all common rail pumps, and mechanical pumps. With an industrial capacitive touch screen and rotary operation interface, it offers convenient operation. and the wireless network card enables remote technical services.
Technical Parameters
| Model | NTS919-pro |
| Electronic power | 3Phase 380V or 3Phase/1phase 220V |
| Output power | 4kw+11KW for standard; 15KW, 18.5KW, 22KW for optional |
| Motor speed | 0-4000RPM |
| Pressure adjustment | 0-2300bar |
| Flow testing range | 0-600ml/1000times |
| Flow measurement accuracy | 0.1 ml |
| Temperature range | 40+-2 |
Function
Left area function details:
Standard:
1. Automatically test common rail injectors and piezo injectors.
2. Automatically test the industance of injector solenoid valve.
3. Automatically test voltage-current curve of the injector.
4. QR coding for BOSCH DENSO DELPHI SIEMENS.
5. Automatically test CAT C7/C9/C-9/3126B injectors.
Optional:
6. BIP function for common rail injector.
7. Automatically test 3408 3412 ford6.0 injector.
8. Automatically test 3412E ISUZU injector.
9. Automatically test G2.9 3116 injector.
Right area function details:
Standard:
1. Automatically test mechinaical pumps.
2. Automatically test common rail pumps.
3. Automatically test Denso HP0 pumps.
4. Automatically test CAT 320D Pump.
Optional:
5. Automatically test EUI/EUP, with EU103 cambox.
6. Automatically test Cummins HPI injector (X15/Q60 injector).
7.Automatically test CAT HEUP actuating pump.
8.Automatically test VP37 and VP44 pump
9.Automatically test RED4 Pump.
